【商品說明】

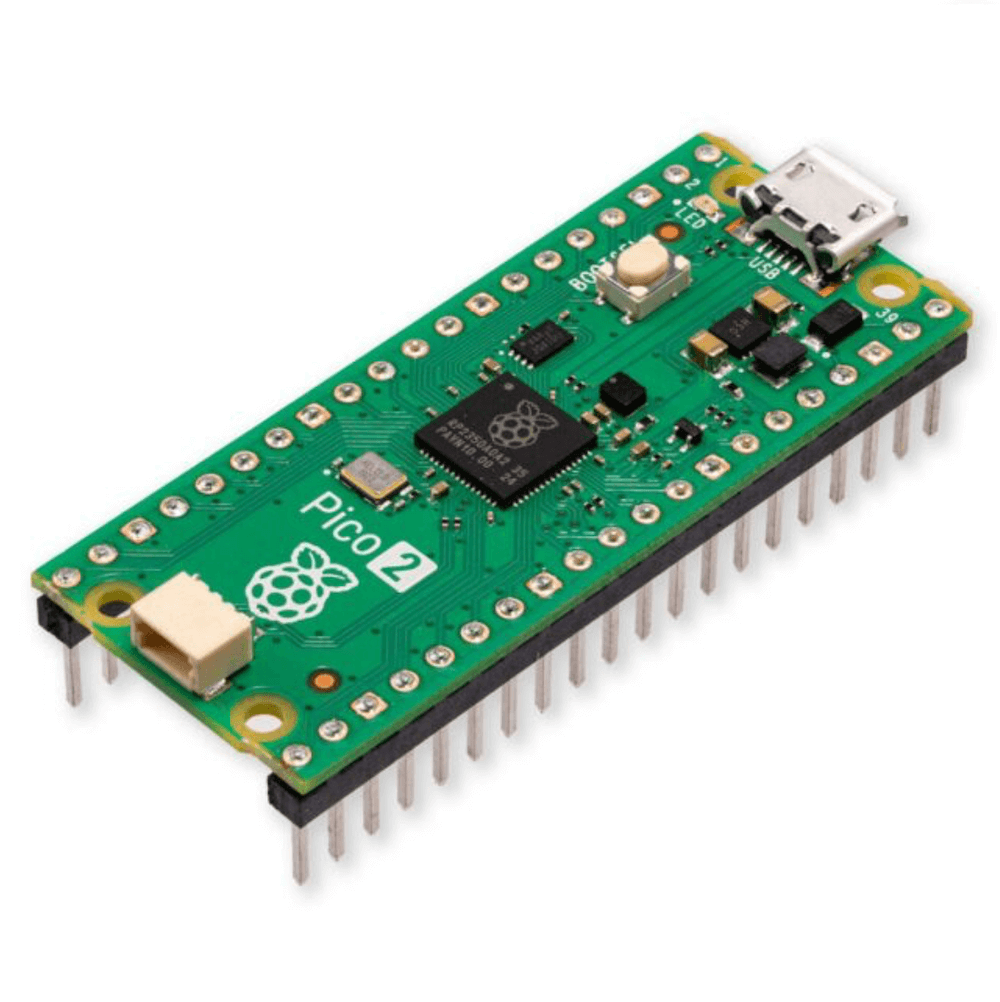

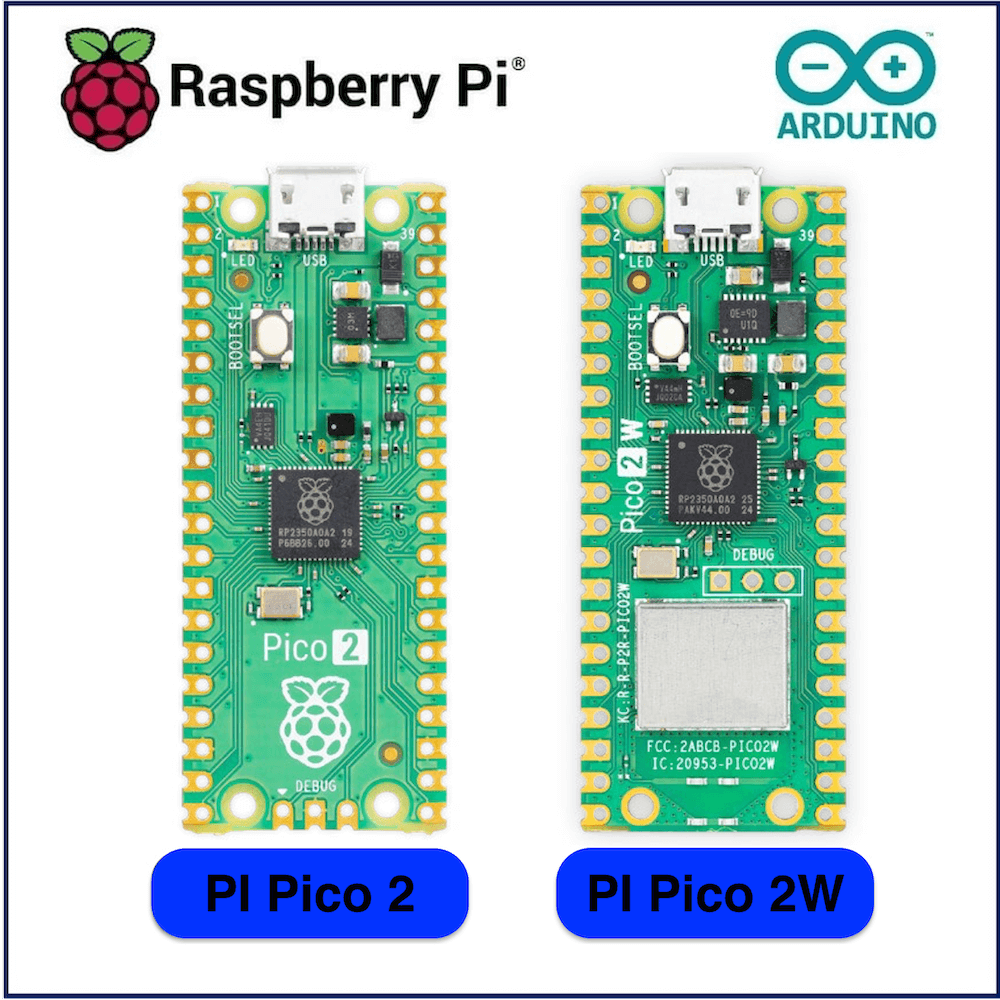

The Raspberry Pi Pico 2 built on RP2350: our new high-performance, secure microcontroller. With a higher core clock
speed, double the on-chip SRAM, double the on-board flash memory, more powerful
Arm cores, optional RISC-V cores, new security features, and upgraded interfacing
capabilities, the Raspberry Pi Pico 2 series delivers a significant performance and feature
boost, while retaining hardware and software compatibility with earlier members of the
Raspberry Pi Pico family.

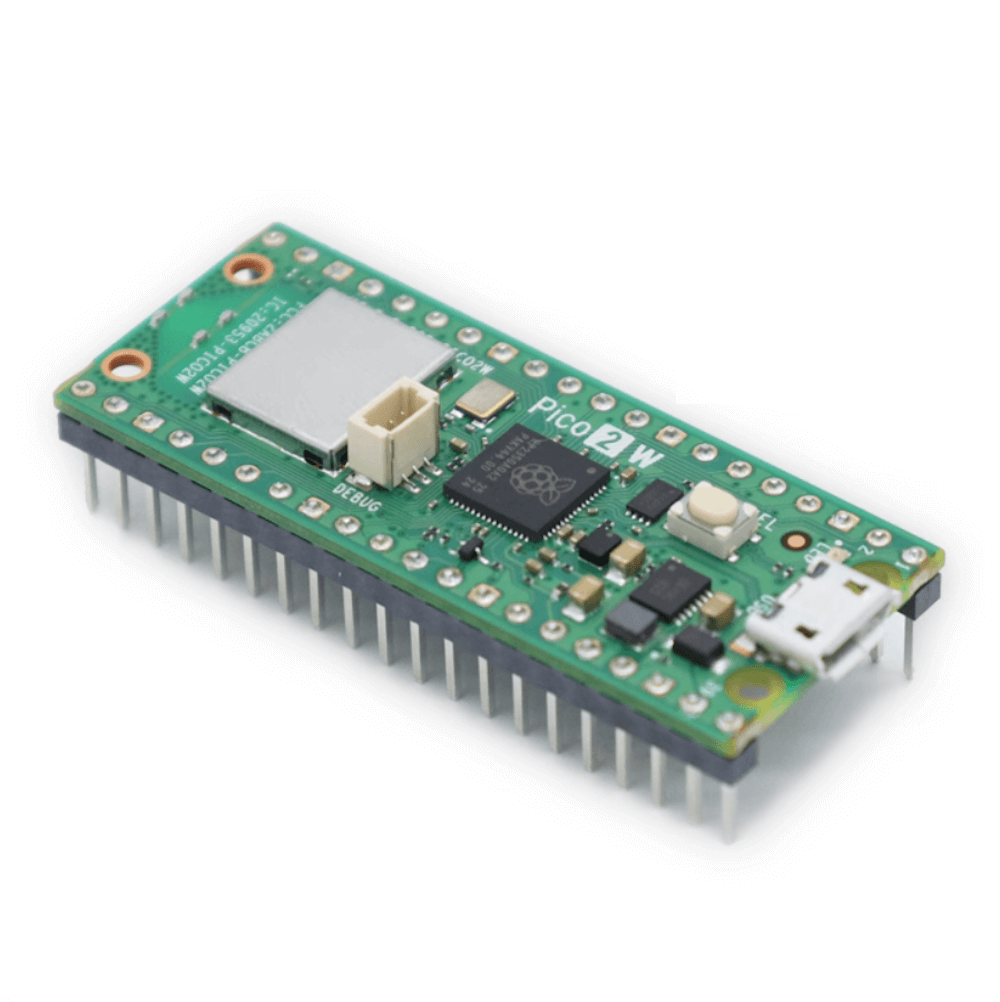

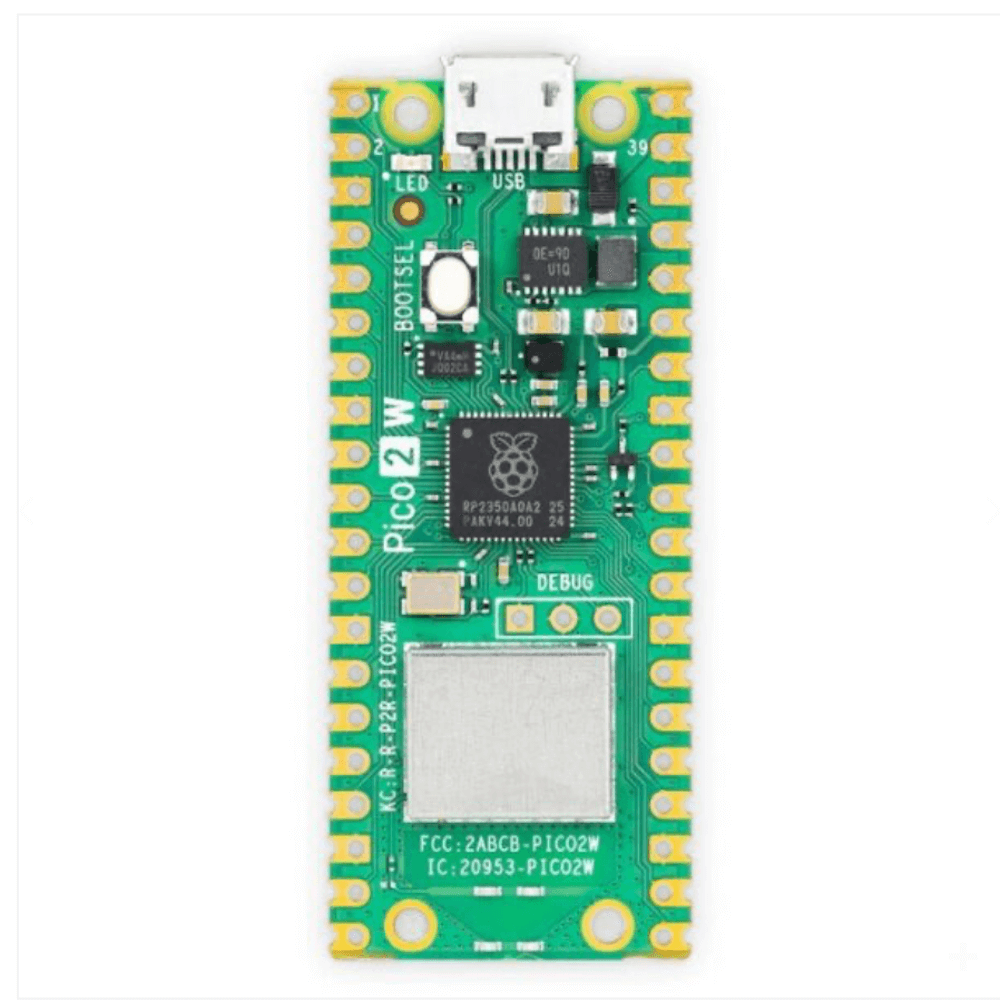

Wireless variant Raspberry Pi Pico 2 W offers 2.4GHz 802.11n wireless LAN and Bluetooth
5.2, with an on-board antenna, and modular compliance certification.
【產品規格】
- Form factor: 21 mm × 51 mm
- CPU: Dual Arm Cortex-M33 or dual RISC-V Hazard3 processors @
- 150MHz
- Memory: 520 KB on-chip SRAM; 4 MB on-board QSPI flash
- Connectivity: 2.4GHz 802.11n wireless LAN and Bluetooth 5.2 (Raspberry Pi
- Pico 2 W only)

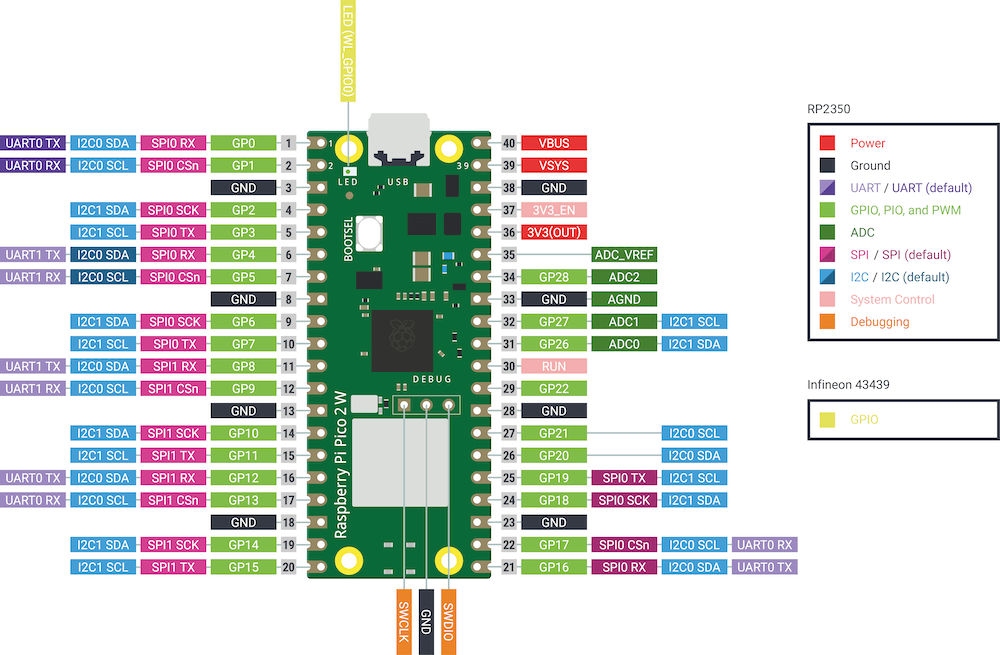

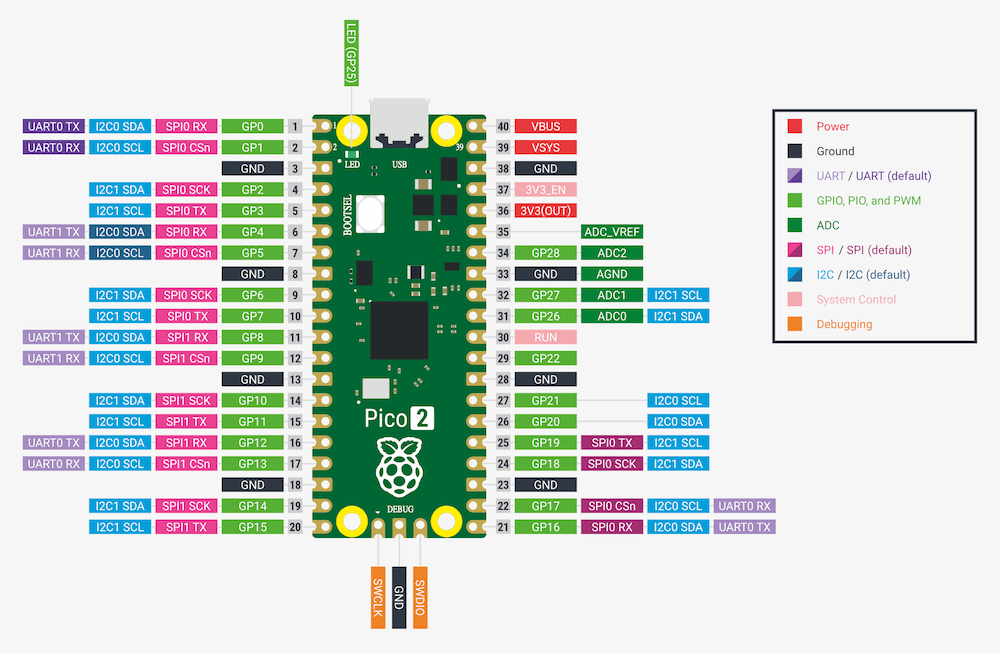

- Interfacing: 26 multi-purpose GPIO pins, including 4 that can be used for ADC
- Peripherals:
- 2 × UART
- 2 × SPI controllers
- 2 × I2C controllers
- 24 × PWM channels
- 1 × USB 1.1 controller and PHY, with host and device support
- 12 × PIO state machines
- Input power: 1.8–5.5V DC
- Operating temperature: -20°C to +85°C
- MTBF1 Ground Benign: 182 000 hours
